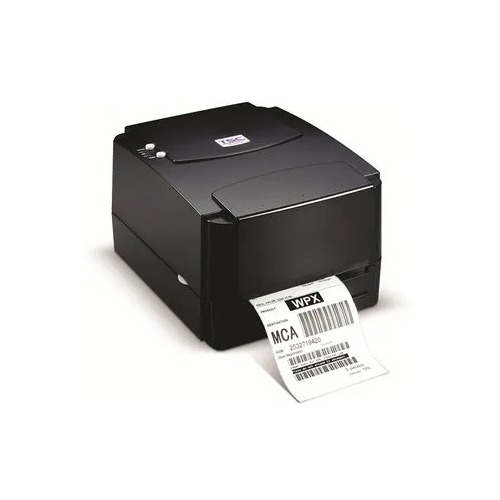

Thermal Printer

Thermal Printer

Product Details :

Model Name/Number: LS-230

Printing method: Direct thermal

Column capacity: 576dots/line OR 512dots/line

Character size: ANK,

FontB: 1.1x2.1mm(9x17dots)

Simplified/traditional: 24x24dot

Priting speed: 230mm/s

Receive buffer: 128k bytes

NV flash buffer 256K bytes

Paper width Paper width

Features :

  • Low Noise thermal printing with auto paper cutter
  • Easy Paper Loading by drop load Mechanism
  • Speed:230mm/Sec
  • High Resolution Printing (576dots/line Or 512dots/line)
  • Support Logo Printing , Can skip spaces , Alarm Option
  • USB, Parallel,Serial and Ethernet Interfaces

Product Description

Dimension 200×145×137mm
Gross weight 3.5kg
Auto cutter whole or partial(option)
Paper end sensor Yes
Paper thickness 0.06-0.08mm
Roll paper 79.5±0.5mm* f83mm
Cash drawer control DC 24V/1A
Power supply DC24V/2.5A
Power adapter input AC 110V/220V, 50~60Hz ;output:DC 24V/2.5A
Drivers Win 9X/Win ME/Win 2000/Win 2003/Win NT/Win XP/Win Vista/win 7
Bar code environment JUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8) / Storage CODABAR/ITF/CODE39/CODE93/CODE128
Storage environment temperature (-10~60°c) humidity(10~90%)
Working environment temperature (0~45 °c) humidity(10~80%)
Sensor Cover open, Receipt coming, Error alarm
Command Compatible with ESC/POS
Print Support Raster &/or ASCI text
Interface serial, parallel, usb, serial+usb or lan
