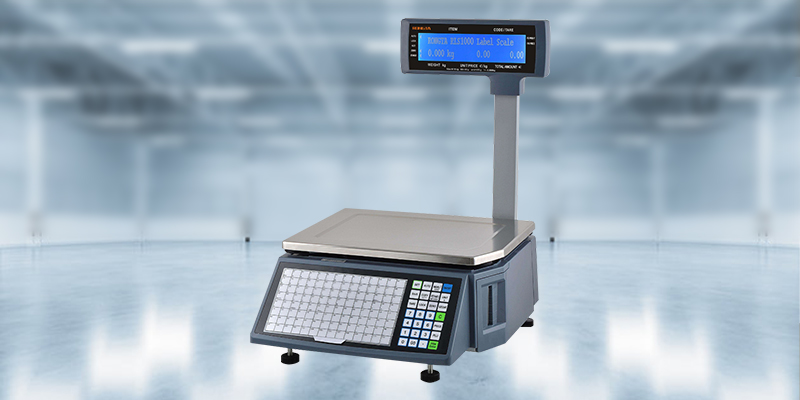

Barcode Label scale

We are proud to present Barcode Label Scale designed to cater to our clients unique requirements

Features

Storage capacity

  • Storage capacity up to 10000 pieces commodities and support 224 hotkeys.

Print with ease

  • Set menu shortcuts, through the PC software can adjust the hotkey sequence and print it out.
  • Each item could choose any tag, Multiple barcode optional, such as 8 bit,13 bit, and 18 bit.
  • Set up different types and information, etc according to different items supporting commodity classification

Supporting needs

  • Support Labels and barcode rotated 90 degrees, or 270 degrees printing.
  • Support for multiple foreign languages, labels, background, the name of the item etc.
  • Support receipt paper and label paper printing.

Connectivity

  • Dual-motor design, printing more efficient and stable
  • Support double screen dot matrix display, easy to promote products
  • Mechanical enclosures designed to be insect and bug resistant
  • Water-proof, moisture-proof, insect-resistant.

Smart Design

  • Support to be connected by Ethernet interface, Software can be upgraded online, to meet customer’s demand.
  • Optional in-built Wifi
  • Auto /Manual PLU updation Software from CSV or EXCEL file
  • Support PLU updating on line and editing, ensure the item all the latest information

Technical specifications

Name Thermal Label Printing Scales
Max Capacity 6/15KG, 15/30KG
Verification Scale Interval 2/5g, 5/10g
Minimum Capacity 40g, 100g
Display Two Line LCD 256*32 dot matrix display
Weight digit ：5 digits;
Unit price digit ：8digits;
Total price digit：8digits.
Keyboard Type : Mylar Button
Number : 140 buttons（28 function keys ，112*2 hot keys ）
PLU Programmable Data LFCode、Item name、Item No.、unit price、charge unit,Fresh days、Tare Weight 、barcode、department、packing weight, packing type normal, fixed weight, fixed price, fixed weight and fixed price), Info One Info Two Label format, discount &hotkey
Data Storage 10000 PLU , can set at most 112 hotkeys
Printing Speed 80mm/s
Interface RS232+Ethernet or RS232+Ethernet+WIFI
Power Supply AC100~240V,50/60Hz
Dimension Length 437mm * Width 372mm * Height 523mm
Label Paper Size Width：30~60mm，Maximum outer diameter：100mm
Maximum inner Diameter ：40mm
Paper Out Method Tear or Strip
Environmental Specifications Temperature
Working ：0~40℃
Storage ：-20~70℃
Humidity Working ：20-85%
Storage ：5-95%
Accuracy Class III
Executive Standard GB / T 7722-2005
